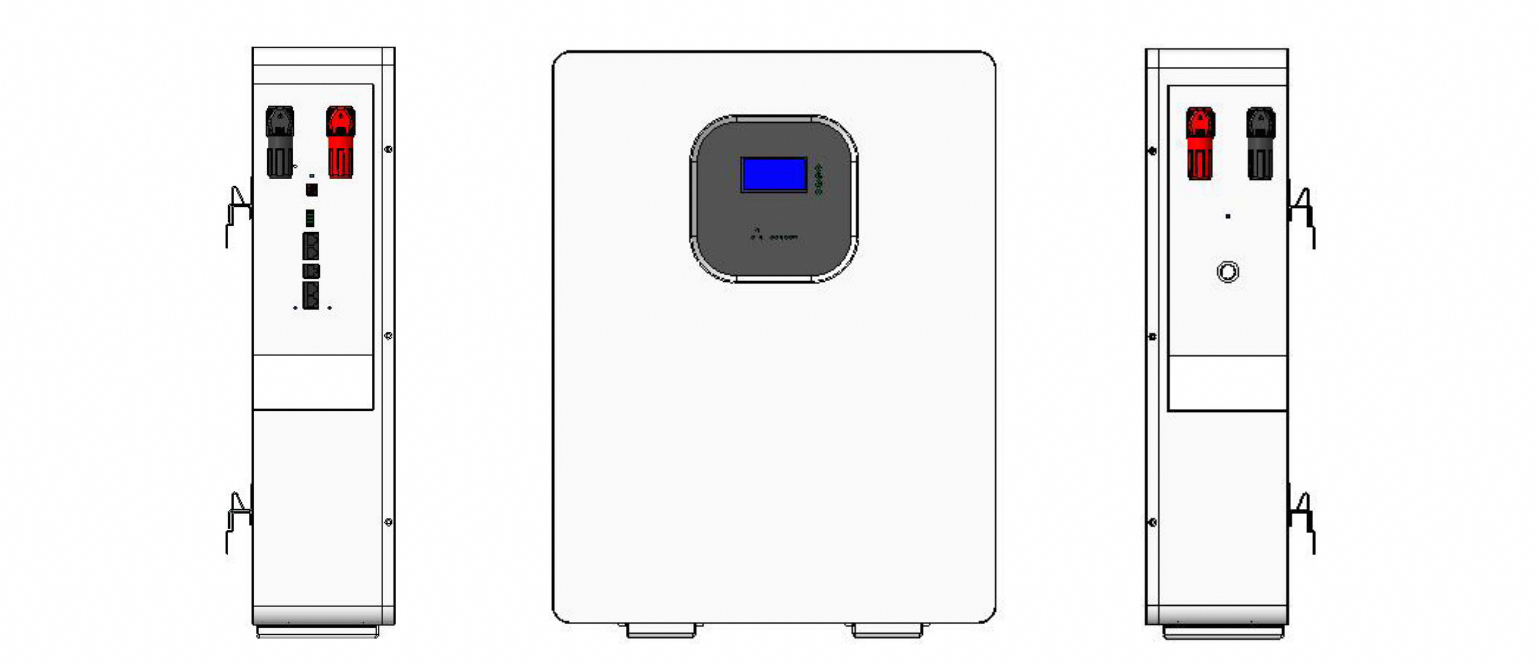

Eco Series
Product overview
Eco series battery is designed specifically for off grid solar system/mobile homes. LiFePO4 battery is the better option than AGM batterywhich has the better performance and a longer life cycle. At the same time,LiFePO4 has a much smaller dimension and less weight.Therefore it is able to satisfy growing nees of vehicle power supply.LiFePO4 is the safe solution for energy storage.With the BMS, ES battery is able to provide continuous power supply or on-board use.Improve energy transferring efficiency and ensure the safety.
Performance characteristics
♦ High cycle life. Keep capacity higher than 80%(@>3000cycles; @80% DOD, @0.5C discharging)
♦ Completely closed design, no noxious gas during using.
♦ Lithium iron phosphate battery is the safest lithium battery at present. With high thermal stability of the material, it will not cause explosion or combustion due to overcharge , short circuit, impact or excessive temperature.
♦ Excellent temperature compatibility; Work at temperature of -20℃~60℃
Eco Series
Lithium Battery System
| MODEL | ZX-LV5120-W-GD | ZX-LV10240-W-GD |
| Rated Voltage | 51.2Vdc | 51.2Vdc |
| Rated Capacity | 100Ah | 200Ah |
| Rated Energy | 5120Wh | 10240Wh |
| Cell Type | LiFePO4 | LiFePO4 |
| Cell Quantity | 3.2V104Ah16PCS | 3.2V104Ah 32PCS |
| Cell Configuration | 16S1P | 16S2P |
| Over-charge Pro tection Voltage | 58.4Vdc | 58.4Vdc |
| Over-discharge Protection Voltage | 43.2Vdc | 43.2Vdc |
| Rated Charge Current @RT | 50A | 100A |
| Max Charge Cuurent@RT | 100A | 200A |
| Over Charge Protection Release | Discharge/ Volt age recovery | Discharge/ Voltage recovery |
| Operating Temp Range | 0~60 | 0~60 |
| Output Voltage Range | 43.2-58Vdc | 43.2-58Vdc |
| Rated Discharge Current @RT | 100A | 200A |
| Max Discharge Current @RT | 105A | 210A |
| Over Discha rge Protection Release | Charging/ Voltage recovery | Charging/ Voltage recovery |
| IP Grade | IP30 | IP30 |
| PARAMETERS | ||
| Over-char ge protection | 3700mV@1s | |
| Over-charge protection release | 3380mV | |
| Over-char ge release method | Cell 3380mV or Discharge | |
| Over-discharge protection | 2800mV@5s | |
| Over-discharge protection release | 2700mV | |
| Over-dischargerelease method | Cell 2950mVorCharging | |
| Over current protection(CHG) | 110A@1s/210A@3s | |
| Over current protection(DISCHG) | 150A@20ms/210A@3ms | |
| Over current release method(CHG) | Remove the charger | |
| Over current release method (DISCHG) | Cut offloads | |
| Overtemperature | Protection@70/ Protection Release@50 | |
| Over temperature | Protection @85 / Protection Release@64 | |
| PACKING | ||
| Dimension(unit) L*W*H(mm) | 635*480*180 2mm | 1014*620*216 2mm |
| Shipping L*W*H(mm) | 620*520*260mm | 1052*672*260mm |
| Weight(N. W.) | 48kgs | 95kgs |
| Weight(G. W.) | 50kgs | 97kgs |
